Product Description
1.Product Overview

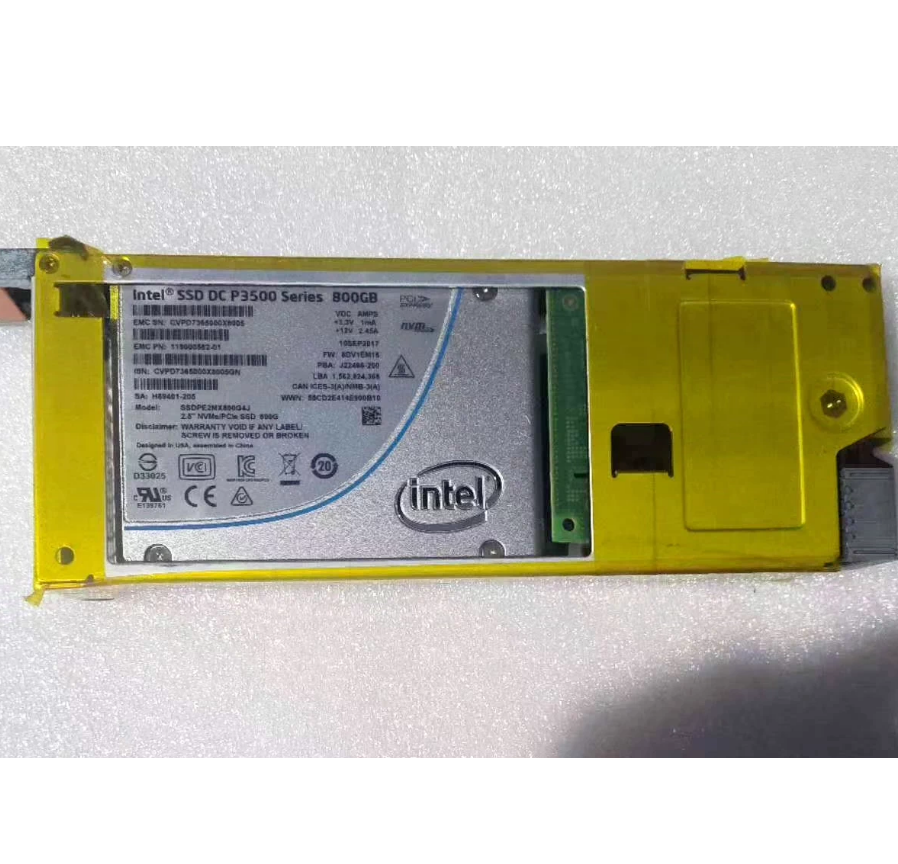

118000562-01 is a high-performance enterprise grade NVMe solid-state drive that features PCIe 3.0 interface and U.2 form factor specifications, providing 800GB of storage capacity. This hard drive is equipped with Intel Enterprise Disk Body, optimized for the 303-404-003A storage expansion shelf in the PowerEdge series storage system, providing ultra-high performance and low latency storage solutions for critical business applications in enterprises.
2. Core specification parameters
Project Specification Description
Brand and Model 118000562-01
Compatible expansion shelf 303-404-003A
Disk model: Intel Enterprise NVMe Disk
Interface type NVMe over PCIe 3.0
Exterior specification U.2 (2.5 inches)
Rated capacity 800 GB
Flash memory type 3D NAND
Sequential reading of performance indicators: 3200 MB/s
Sequential writing: 1200 MB/s
3. Performance characteristics
Ultra-high performance:
Highest sequential read speed: 3200 MB/s
Highest sequential write speed: 1200 MB/s
Random read performance: up to 500000 IOPS
Random write performance: up to 100000 IOPS
Average access latency:<20 μ s
Enterprise level durability:
Daily full disk write count: 3 DWPD
Total number of bytes written: 4.38 TBW
Support continuous operation 24/7
Design service life: 5 years
Advanced data protection:
End to end data protection
A fail-safe mechanism
Advanced LDPC Error Correction
Wear balance technology
4. Technical characteristics
Interface specifications:
PCIe 3.0 x4 interface
NVMe 1.3 protocol
U. 2 (SFF-8639) interface
Support multiple namespaces
Power consumption management:
Working power consumption: 8-12W
Standby power consumption: 4W
dynamic power management
Thermal management function
Environmental specifications:
Working temperature: 0°C to 70°C
Storage temperature: -40°C to 85°C
Working humidity: 5% to 95% RH
5. Compatibility information
Support system:
PowerEdge series servers
VxRail hyper fusion system
NVMe supported storage system
Storage expansion shelf:
Specially optimized for 303-404-003A storage expansion shelf
Support hot swappable installation
Plug and Play configuration
6. Application scenarios
High performance computing:
Database acceleration (Oracle, SQL Server)
Virtualization infrastructure
Cloud infrastructure
Key business applications:
Real time data analysis
High frequency trading system
Virtual Desktop Infrastructure
7. Management and maintenance
Monitoring function:
NVMe Management Interface
Temperature monitoring
S. M.A.R.T. function
Maintenance features:
Hot swappable support
Online firmware upgrade
diagnostic tool
8. Service Support
Technical Support
9. Physical specifications
Size: 100.0 x 69.85 x 14.8 mm
Weight: Approximately 150g
Interface: U.2 (SFF-8639)
