Product Description
1.Product Overview

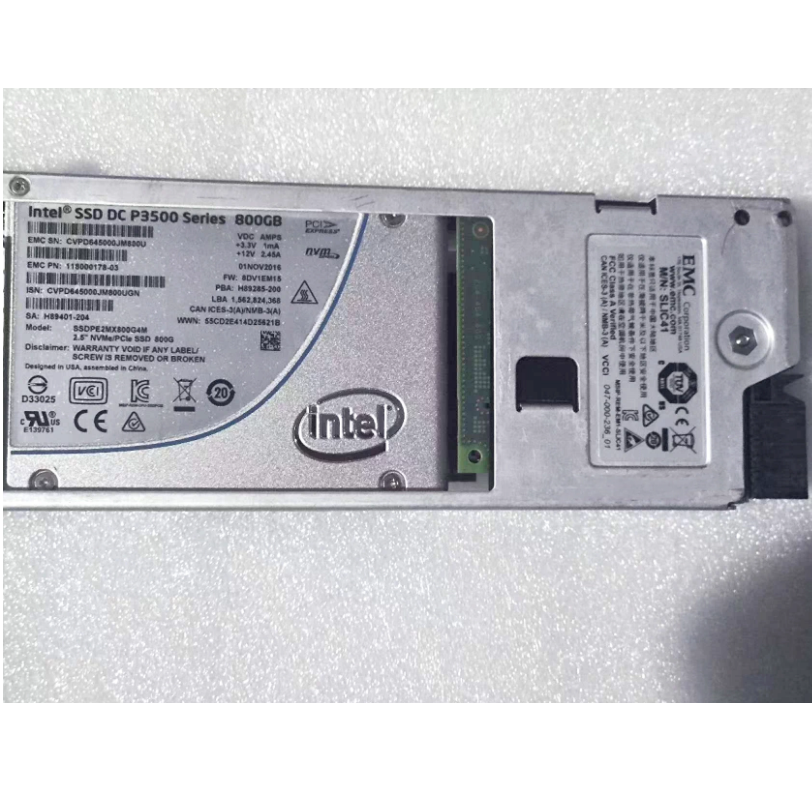

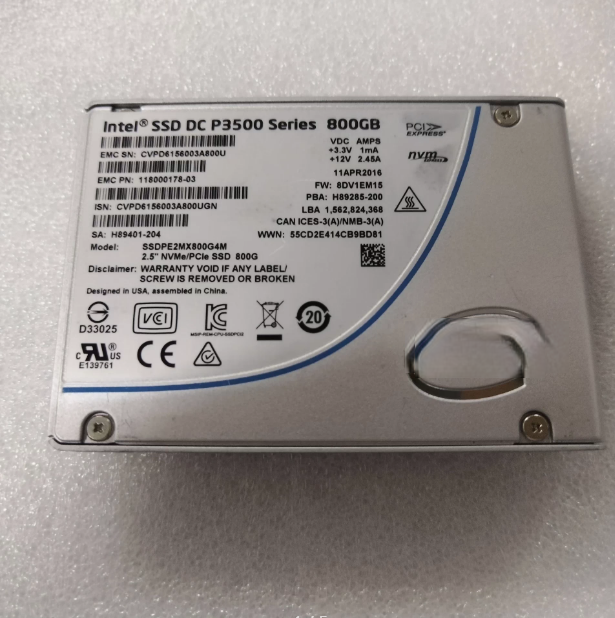

118000178-03 is a high-performance enterprise grade NVMe solid-state drive that features PCIe 3.0 interface and U.2 (2.5-inch) form factor specifications, providing 800GB of storage capacity. This hard drive is equipped with Intel Enterprise NVMe drive body, optimized for the 303-404-000A storage expansion shelf in PowerEdge series servers and storage systems, providing ultra-high performance and ultra-low latency storage solutions for critical business applications in enterprises.
2. Core specification parameters
Project Specification Description
Brand and Model 118000178-03
Compatible expansion shelf 303-404-000A
Disk manufacturer Intel
Interface type NVMe over PCIe 3.0 x4
Exterior specification U.2 (2.5 inches)
Rated capacity 800 GB
Flash memory type 3D NAND
Sequential reading of performance indicators: 3200 MB/s
Sequential writing: 1200 MB/s
3. Performance characteristics
Ultra-high performance:
Highest sequential read speed: 3200 MB/s
Highest sequential write speed: 1200 MB/s
Random read performance: up to 500000 IOPS
Random write performance: up to 100000 IOPS
Average access latency:<20 μ s
Enterprise level durability:
Daily full disk write count: 3 DWPD
Total number of bytes written: 4.38 TBW
Support continuous operation 24/7
Design service life: 5 years
Advanced data protection:
End to end data path protection
Advanced Power Failure Protection (PLP)
LDPC Error Correction Technology
Wear balance algorithm
4. Technical characteristics
Interface specifications:
PCIe 3.0 x4 interface
NVMe 1.3 protocol
U. 2 (SFF-8639) interface
Support multiple namespaces
Power management:
Typical working power consumption: 8-12W
Standby power consumption: 4W
dynamic power management
Advanced Thermal Management
Environmental adaptability:
Working temperature range: 0°C to 70°C
Storage temperature range: -40°C to 85°C
Working humidity range: 5% to 95% RH
5. System compatibility
Support platform:
PowerEdge series servers
VxRail hyper fusion system
EMC storage systems supporting NVMe protocol
Storage expansion shelf:
Specially designed for optimizing the storage expansion shelf of 303-404-000A
Support hot swappable installation
Plug and Play configuration
6. Application scenarios
High performance computing:
Enterprise level database acceleration (Oracle, SQL Server)
Virtualization infrastructure
Cloud computing platform
Key business applications:
Real time data analysis
High frequency trading system
Virtual Desktop Infrastructure (VDI)
Data intensive applications:
Big data analysis platform
Artificial Intelligence/Machine Learning
Media content processing
7. Management and maintenance functions
Monitoring diagnosis:
NVMe Management Interface (NVMe MI)
Real time temperature monitoring
S. M.A.R.T. status monitoring
service life prediction
Maintenance features:
Online hot plug support
Seamless firmware upgrade
Remote management function
Automatic diagnostic tool
8. Service Support
Technical Support: Professional Technical Support Team
9. Physical specifications
Dimensions: 100.0 × 69.85 × 14.8 mm
Product weight: approximately 150g
Interface type: U.2 (SFF-8639)
Installation method: 2.5-inch hot swappable tray
