Product Description

1.Product Overview

118000540 is a high-performance enterprise grade solid-state drive that features a 12Gb/s SAS interface and a 2.5-inch form factor, providing 3.2TB of storage capacity. This hard drive adopts PM1635A enterprise grade disk body, designed specifically for enterprise storage systems, providing high reliability and high-performance storage solutions for critical business of enterprises.

2. Core specification parameters

Project Specification Description

Brand and Model 118000540

Disk model PM1635A

Interface type SAS-3 (12.0 Gb/s)

Physical specification 2.5 inches

Capacity 3.2 TB

Flash memory type MLC NAND

Read/write performance sequential read: 1500 MB/s

Sequential writing: 1000 MB/s

3. Performance characteristics

High performance:

Sequential read speed: up to 1500 MB/s

Sequential write speed: up to 1000 MB/s

Random read performance: up to 200000 IOPS

Random write performance: up to 50000 IOPS

Average latency:<130μs

Enterprise level durability:

Daily full disk write count: 10 DWPD

Total number of bytes written: 58.4 TBW

Supports 24/7 uninterrupted operation

Design service life: 5 years

Advanced data protection:

End to end data path protection

Power outage protection (PLP) function

Advanced ECC error correction mechanism

RAID optimization support

4. Technical characteristics

Interface features:

SAS-3 (12.0 Gb/s) interface

Support dual port redundancy

Backward compatible with SAS-2 (6.0 Gb/s)

Support multi-path access

Power consumption management:

Working power consumption: 8-12W

Standby power consumption: 4W

Support energy-saving mode

Dynamic power consumption regulation

Environmental specifications:

Working temperature: 0°C to 55°C

Storage temperature: -40°C to 70°C

Working humidity: 5% to 95% RH

Anti vibration capability: meets enterprise level standards

5. Compatibility information

Support system:

Unity series storage system

VNX series

VMAX series (compatibility needs to be verified)

Other EMC storage systems that support SAS-3 interface

6. Application scenarios

Database application:

Oracle Database

Microsoft SQL Server

IBM DB2

MySQL Cluster

Virtualization environment:

VMware HANA virtualization platform

Microsoft Hyper-V Environment

Virtual Desktop Infrastructure (VDI)

Enterprise applications:

High Performance Computing

Big Data Analytics

Real time trading system

Backup and disaster recovery system

7. Management and maintenance

Monitoring function:

S. M.A.R.T. status monitoring

Real time temperature monitoring and warning

Service life monitoring

Performance statistics and reports

Maintenance features:

Support online hot swappable replacement

Firmware online rolling upgrade

Diagnostic tool support

Remote management function

8. Service Support

Technical support: Original factory technical service

9. Physical specifications

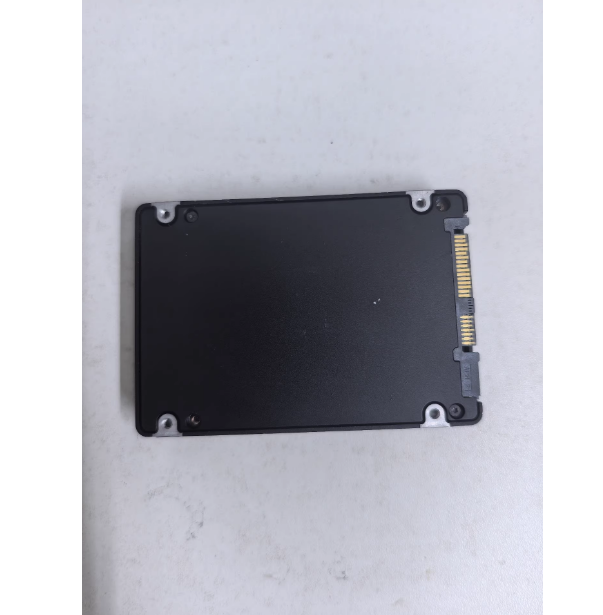

Size: 100.0 × 69.85 × 14.8 mm

Weight: Approximately 150g

Interface type: SAS (SFF-8639)

Installation method: 2.5-inch hot swappable bracket
