Product Description
1.Product Overview

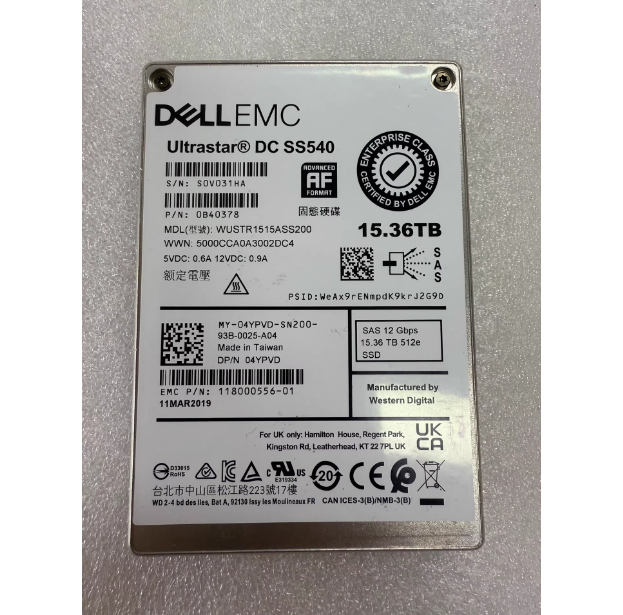

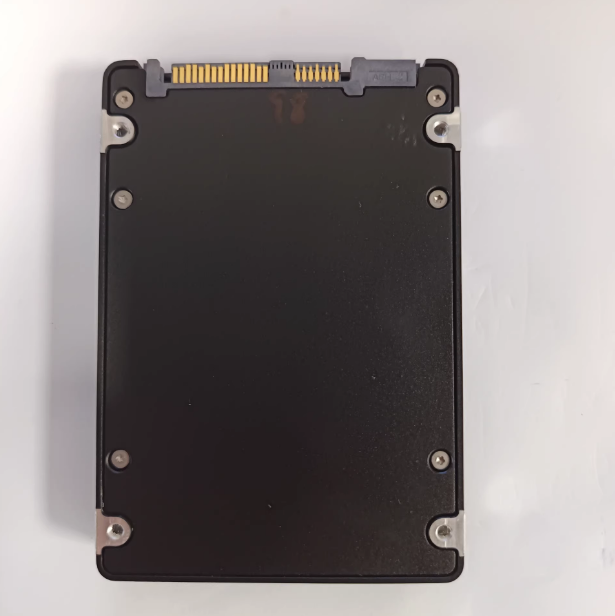

118000556 is a high-capacity enterprise grade solid-state drive that features a 12Gb/s SAS interface and a 2.5-inch form factor, providing 15.36TB of storage capacity. This hard drive adopts PM1633A enterprise grade disk body, designed specifically for EMC high-end storage systems, providing high reliability and high-performance storage solutions for enterprise level massive data storage needs.
2. Core specification parameters
Project Specification Description
Brand and Model 118000556
Disk model PM1633A
Interface type SAS-3 (12.0 Gb/s)
Physical specification 2.5 inches
Capacity 15.36 TB
Flash Memory Type: 3D TLC NAND
Read/write performance sequential read: 2100 MB/s
Sequential writing: 1800 MB/s
3. Performance characteristics
High performance:
Sequential read speed: up to 2100 MB/s
Sequential write speed: up to 1800 MB/s
Random read performance: up to 400000 IOPS
Random write performance: up to 80000 IOPS
Average latency:<100 μ s
Enterprise level durability:
Daily full disk write count: 3 DWPD
Total number of bytes written: 84000 TBW
Supports 24/7 uninterrupted operation
Design service life: 5 years
Advanced data protection:
End to end data path protection
Power outage protection (PLP) function
Advanced ECC error correction mechanism
RAID optimization support
4. Technical characteristics
Interface features:
SAS-3 (12.0 Gb/s) interface
Support dual port redundancy
Backward compatible with SAS-2 (6.0 Gb/s)
Support multi-path access
Power consumption management:
Working power consumption: 12-20W
Standby power consumption: 6W
Support energy-saving mode
Dynamic power consumption regulation
Environmental specifications:
Working temperature: 0°C to 55°C
Storage temperature: -40°C to 70°C
Working humidity: 5% to 95% RH
Anti vibration capability: meets enterprise level standards
5. Compatibility information
Support system:
PowerMax series
VMAX All Flash Series
Unity series (compatibility needs to be verified)
Other high-end storage systems that support SAS-3 interface
6. Application scenarios
Big data applications:
data warehouse
Big data analysis platform
Artificial Intelligence/Machine Learning Dataset
Virtualization environment:
Large scale virtualization infrastructure
Cloud infrastructure storage
Virtual Desktop Infrastructure (VDI)
Key applications for enterprises:
Large scale database storage
Archive storage system
Backup and disaster recovery system
Media content storage
7. Management and maintenance
Monitoring function:
S. M.A.R.T. status monitoring
Real time temperature monitoring and warning
Service life monitoring
Performance statistics and reports
Maintenance features:
Support online hot swappable replacement
Firmware online rolling upgrade
Diagnostic tool support
Remote management function
8. Service Support
Technical support: Original factory technical service
9. Physical specifications
Size: 100.0 × 69.85 × 14.8 mm
Weight: Approximately 170g
Interface type: SAS (SFF-8639)
Installation method: 2.5-inch hot swappable bracket
