Product Description
1.Product Overview

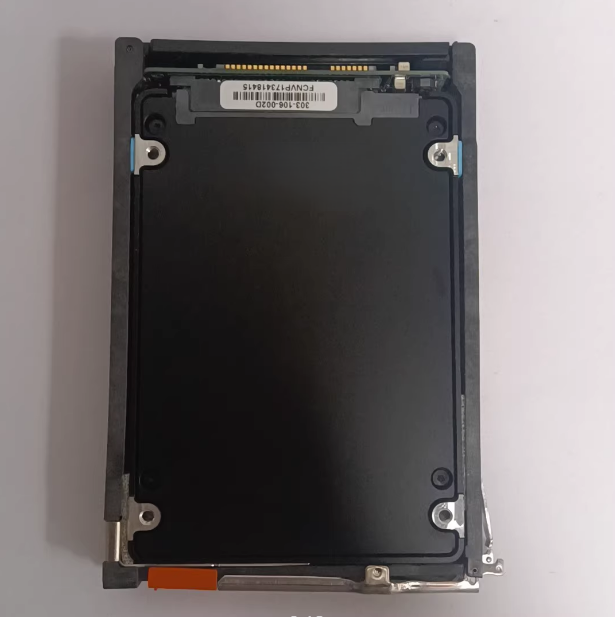

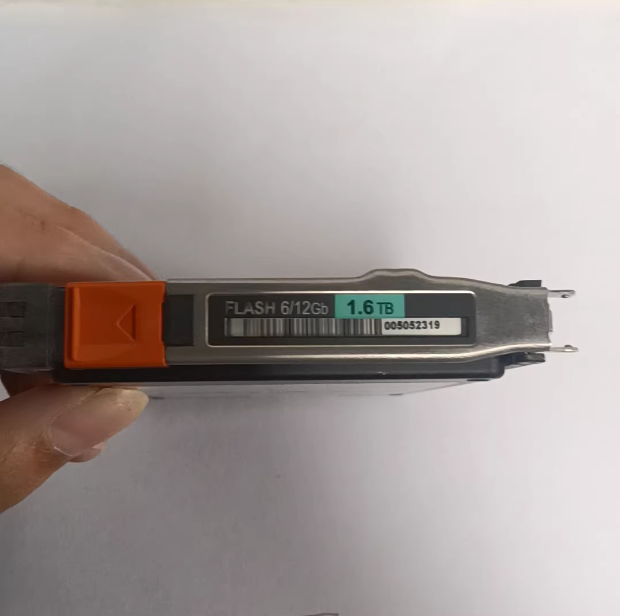

118000539 is a high-performance enterprise grade solid-state drive that features a 12Gb/s SAS interface and a 2.5-inch form factor, providing 1.6TB of storage capacity. This hard drive is equipped with PM1635A enterprise grade disk body, optimized for the 005052319 storage expansion shelf in Unity series storage systems, providing high-performance and high reliability storage solutions for critical business applications in enterprises.
2. Core specification parameters
Project Specification Description
Brand and Model 118000539
Compatible with extension shelf 005052319

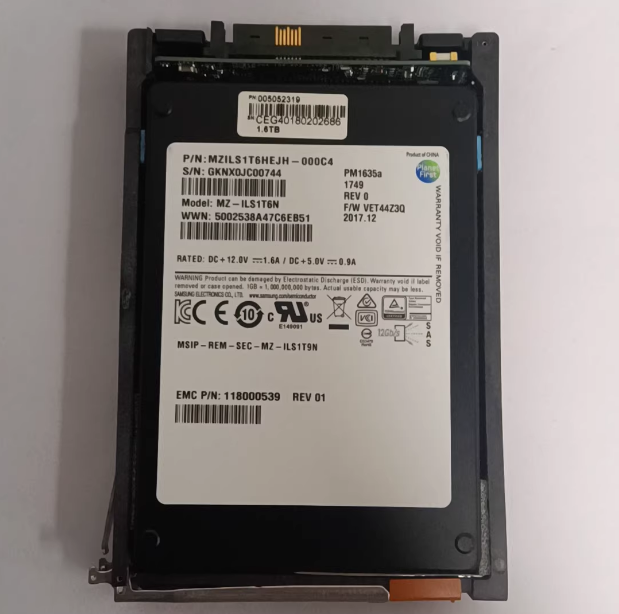

Disk model PM1635A
Interface type SAS-3 (12.0 Gb/s)
Appearance specification 2.5 inches
Rated capacity 1.6 TB
Flash memory type MLC NAND
Sequential reading of performance indicators: 1200 MB/s
Sequential writing: 800 MB/s
3. Performance characteristics
High performance:
Highest sequential read speed: 1200 MB/s
Highest sequential write speed: 800 MB/s
Random read performance: up to 180000 IOPS
Random write performance: up to 45000 IOPS
Average access latency:<150 μ s
Enterprise level durability:
Daily full disk write count: 10 DWPD
Total number of bytes written: 29.2 TBW
Support continuous operation 24/7
Design service life: 5 years
Data protection mechanism:
End to end data path protection
Advanced Power Failure Protection (PLP)
Multi-layer ECC error correction technology
Wear balance algorithm
4. Technical characteristics
Interface specifications:
SAS-3 (12.0 Gb/s) standard interface
Dual port redundancy design
Backward compatible with SAS-2 (6.0 Gb/s)
Support multi-path I/O
Power management:
Typical working power consumption: 8-12W
Standby power consumption: 4W
Advanced energy-saving mode
Dynamic power consumption regulation
Environmental adaptability:
Working temperature range: 0°C to 55°C
Storage temperature range: -40°C to 70°C
Working humidity range: 5% to 95% RH
Anti vibration performance meets enterprise level standards
5. System compatibility
Support platform:
Unity 300/400/500/600 series
UnityVSA series
Unity XT series
Storage expansion shelf:
Specially optimized design for 005052319 storage expansion shelf
Support hot swappable installation
Plug and Play configuration
6. Application scenarios
Key business applications:
Enterprise level databases (Oracle, SQL Server)
Virtualization infrastructure storage
Email server storage
Data intensive applications:
File sharing storage
Backup and Archive System
real-time data processing system
Enterprise Infrastructure:
Cloud infrastructure storage
Virtual Desktop Infrastructure (VDI)
Disaster recovery backup system
7. Management and maintenance functions
Monitoring diagnosis:
Real time S.M.A.R.T. status monitoring
Temperature sensing and overheat protection
Service life prediction analysis
Detailed performance indicator record
Maintenance features:
Online hot plug support
Seamless firmware upgrade
Remote management function
Automatic diagnostic tool
8. Service Support
Technical Support: Professional Technical Support Team
9. Physical specifications
Dimensions: 100.0 × 69.85 × 14.8 mm
Product weight: approximately 150g
Interface type: SAS (SFF-8639)
Installation method: 2.5-inch hot swappable tray
