Product Description

1.Product Overview

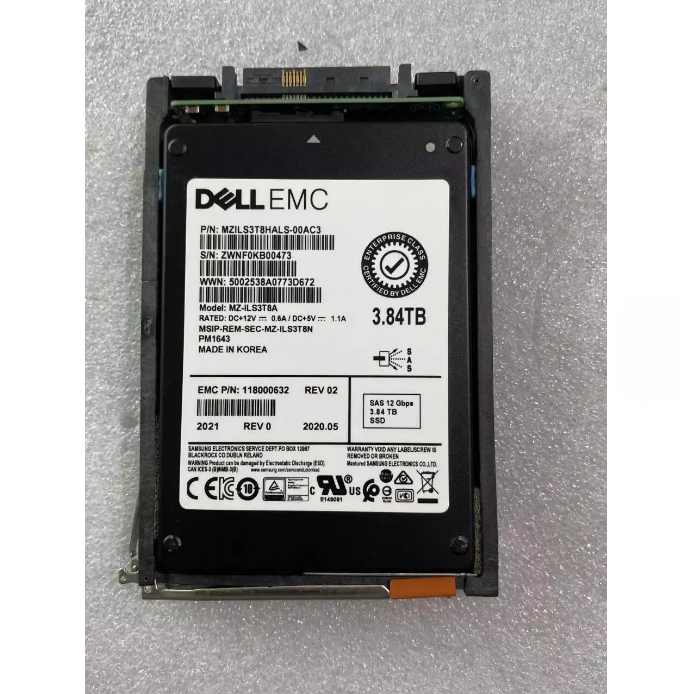

118000632 is a high-performance enterprise grade solid-state drive that features a 12Gb/s SAS interface and a 2.5-inch form factor, providing 3.84TB of storage capacity. This hard drive is designed specifically for PowerMax series storage systems and is compatible with three types of storage expansion shelves: 005052584, 005052585, and 005052560. It uses PM1643 enterprise grade disk bodies to provide a highly reliable storage solution for critical business operations.

2. Core specification parameters

Project Specification Description

Brand and Model 118000632

Compatible expansion shelf 005052584/005052585/005052560

Disk model PM1643

Interface type SAS-3 (12.0 Gb/s)

Physical specification 2.5 inches

Capacity 3.84 TB

Flash Memory Type: 3D TLC NAND

Read/write performance sequential read: 2100 MB/s

Sequential writing: 1800 MB/s

3. Performance characteristics

High performance:

Sequential read speed: up to 2100 MB/s

Sequential write speed: up to 1800 MB/s

Random read performance: up to 400000 IOPS

Random write performance: up to 150000 IOPS

Average latency:<100 μ s

Enterprise level durability:

Daily full disk write count: 3 DWPD

Total number of bytes written: 21000 TBW

Supports 24/7 uninterrupted operation

Design service life: 5 years

Advanced data protection:

End to end data protection

A fail-safe mechanism

Advanced ECC Error Correction

4. Technical characteristics

Interface features:

SAS-3 (12.0 Gb/s) interface

Support dual port redundancy

Backward compatible with SAS-2 (6.0 Gb/s)

Power consumption management:

Working power consumption: 12-18W

Standby power consumption: 6W

Support dynamic power consumption adjustment

Environmental specifications:

Working temperature: 0°C to 55°C

Storage temperature: -40°C to 70°C

Working humidity: 5% to 95% RH

5. Compatibility information

Support system:

PowerMax 2000/4000/8000 series

VMAX 250F/450F/850F series

PowerMaxOS

Storage expansion shelf:

Speciall yoptimizedfor storage expansion shelves 005052584/005052585/005052560

Support hot swappable installation

Plug and Play configuration

6. Application scenarios

Database application:

Oracle Database

Microsoft SQL Server

SAP HANA

Virtualization environment:

VMware vSphere

Microsoft Hyper-V

Containerized environment

Enterprise applications:

real time analysis system

Artificial Intelligence/Machine Learning

Financial trading system

7. Management and maintenance

Monitoring function:

S. M.A.R.T. status monitoring

Real time temperature monitoring

Health Status Report

Maintenance features:

Supports hot swapping

Online firmware upgrade

Diagnostic tool support

8. Service Support

Technical Support: Original Factory Service Support

Service level: optional 24 × 7 technical support

9. Physical specifications

Size: 100.0 × 69.85 × 14.8 mm

Weight: Approximately 170g

Interface: SAS (SFF-8639)

Installation method: 2.5-inch hot swappable bracket
