Product Description
1.Product Overview

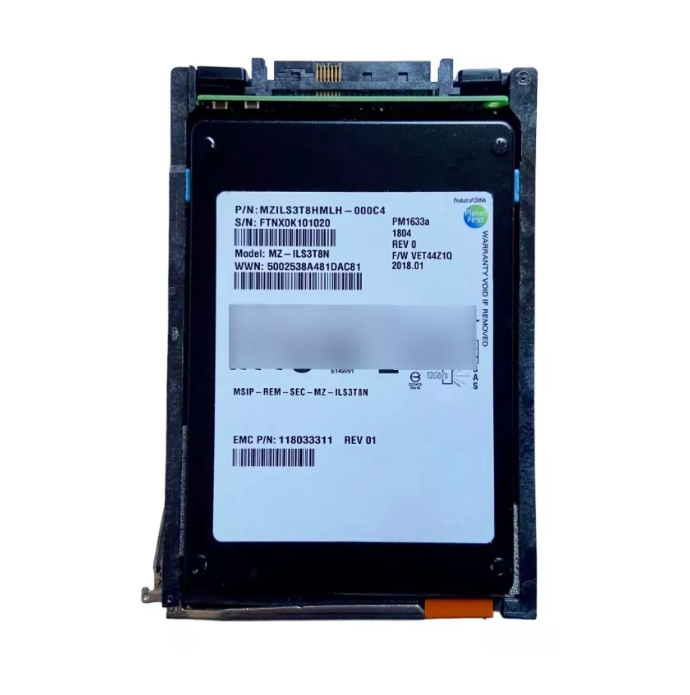

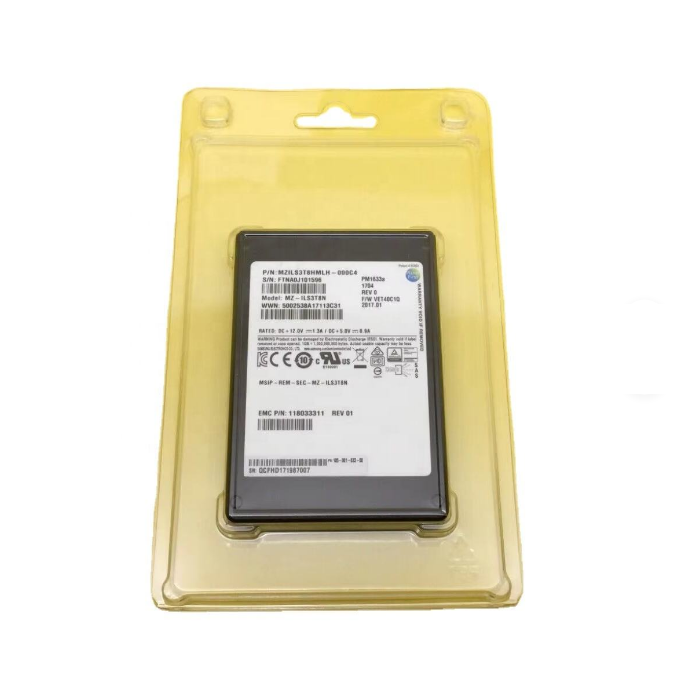

118033311 is a high-performance enterprise grade solid-state drive that features a 12Gb/s SAS interface and a 2.5-inch form factor, providing 3.84TB of storage capacity. This hard drive adopts PM1633A enterprise grade disk body, designed specifically for enterprise storage systems, providing high reliability and high-performance storage solutions for critical business of enterprises.
2. Core specification parameters
Project Specification Description
Brand and Model 118033311
Disk model PM1633A
Interface type SAS-3 (12.0 Gb/s)
Physical specification 2.5 inches
Capacity 3.84 TB
Flash memory type MLC NAND
Read/write performance sequential read: 1800 MB/s
Sequential writing: 1200 MB/s
3. Performance characteristics
High performance:
Sequential read speed: up to 1800 MB/s
Sequential write speed: up to 1200 MB/s
Random read performance: up to 250000 IOPS
Random write performance: up to 60000 IOPS
Average latency:<120 μ s
Enterprise level durability:
Daily full disk write count: 5 DWPD
Total number of bytes written: 35000 TBW
Supports 24/7 uninterrupted operation
Design service life: 5 years
Advanced data protection:
End to end data path protection
Power outage protection (PLP) function
Advanced ECC error correction mechanism
RAID optimization support
4. Technical characteristics
Interface features:
SAS-3 (12.0 Gb/s) interface
Support dual port redundancy
Backward compatible with SAS-2 (6.0 Gb/s)
Support multi-path access
Power consumption management:
Working power consumption: 10-16W
Standby power consumption: 5W
Support energy-saving mode
Dynamic power consumption regulation
Environmental specifications:
Working temperature: 0°C to 55°C
Storage temperature: -40°C to 70°C
Working humidity: 5% to 95% RH
Anti vibration capability: meets enterprise level standards
5. Compatibility information
Support system:
VMAX series storage systems
PowerMax series
Unity series (compatibility needs to be verified)
Other storage systems that support SAS-3 interface
6. Application scenarios
Database application:
Oracle Database
Microsoft SQL Server
IBM DB2
SAP HANA
Virtualization environment:
VMware HANA virtualization platform
Microsoft Hyper-V Environment
Virtual Desktop Infrastructure (VDI)
Enterprise applications:
Large scale transaction processing system
data warehouse
High Performance Computing
Backup and disaster recovery system
7. Management and maintenance
Monitoring function:
S. M.A.R.T. status monitoring
Real time temperature monitoring and warning
Service life monitoring
Performance statistics and reports
Maintenance features:
Support online hot swappable replacement
Firmware online rolling upgrade
Diagnostic tool support
Remote management function
8. Service Support
Technical support: Original factory technical service
9. Physical specifications
Size: 100.0 × 69.85 × 14.8 mm
Weight: Approximately 160g
Interface type: SAS (SFF-8639)
Installation method: 2.5-inch hot swappable bracket
