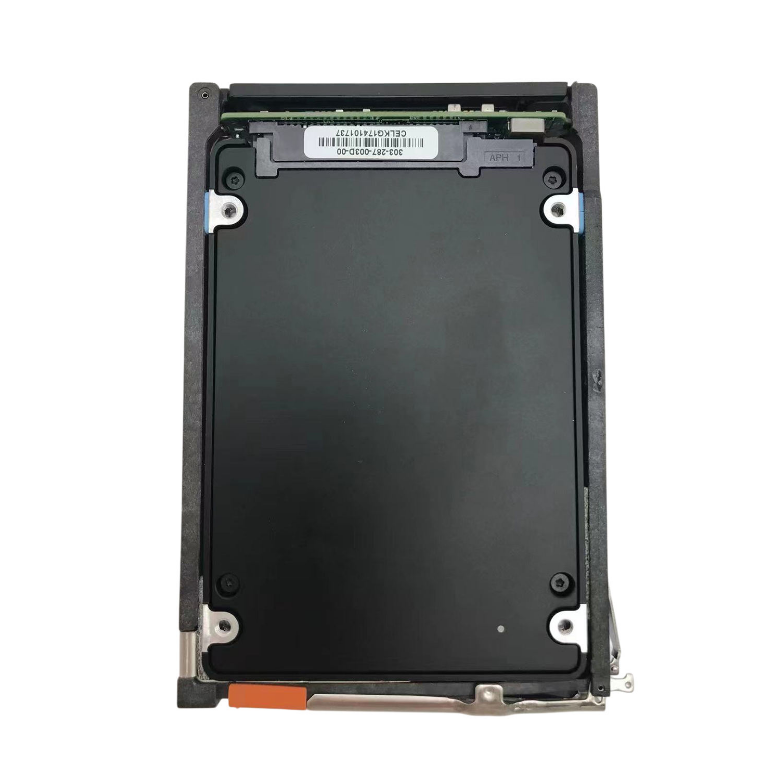

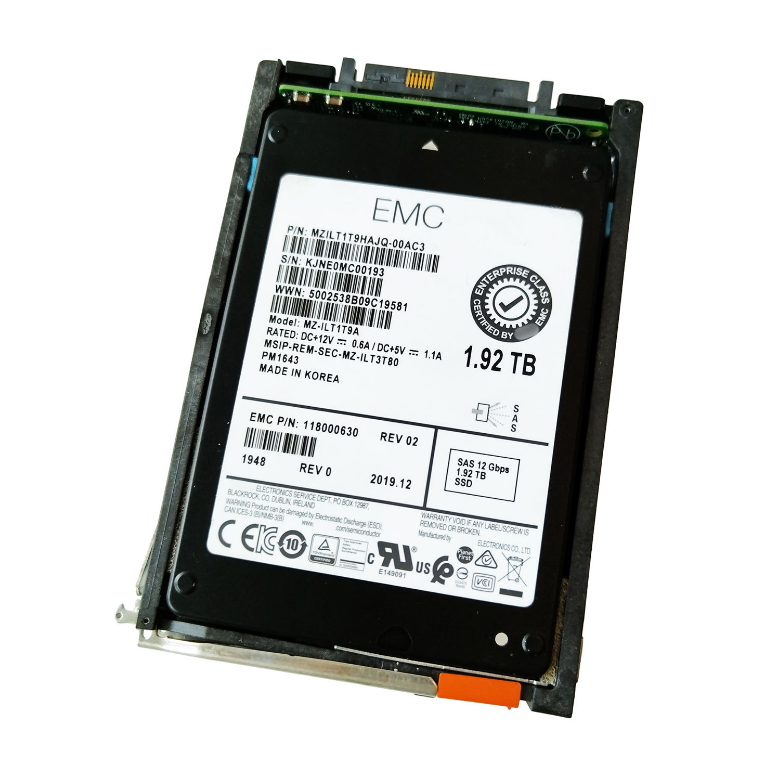

EMC Enterprise NVMe Solid State Drive - Model 118000630 Product Details
1、 Product Overview
EMC 118000630 (disk body model PM1643) is a high-performance enterprise grade NVMe solid-state drive with a capacity of 1.92TB. The product uses advanced 3D TLC NAND flash technology, based on PCIe interface and NVMe protocol, to provide reliable performance for enterprise workloads, making it an ideal choice for building modern storage infrastructure.
2、 Detailed technical specifications
Detailed specifications of parameter categories
Basic Information
EMC part number 118000630
Disk model PM1643
Flash Memory Type: 3D TLC NAND
Interface Protocol NVMe over PCIe 3.0
Appearance specification 2.5 inches U.2
Capacity information
Nominal capacity 1.92TB
User available capacity ≈ 1.75TB
performance parameters
Sequential read speed 3200 MB/s
Sequential write speed 1800 MB/s
4K random read 600000 IOPS
4K random write 150000 IOPS
Read/write delay: Read<90 μ s, write<20 μ s
Reliability parameters
Durability level 3 DWPD
Service life 10.5 PBW
Mean time between failures 2000000 hours
Warranty Policy 5-year Limited Warranty
3、 Core Technologies and Characteristics
1. High performance architecture
PCIe 3.0 x4 interface
NVMe optimized protocol stack
High performance flash memory controller
Support multiple namespaces
2. Enterprise level reliability
Power outage protection mechanism: data integrity guarantee
End to end data protection: complete verification mechanism
Advanced Error Correction: LDPC Error Correction Technology
Intelligent wear balance: extending service life
3. Intelligent management function
Hot swappable support: online maintenance capability
Health status monitoring: S.M.A.R.T. attribute
Temperature Management: Dynamic Temperature Control Adjustment
Remote Management: Standard Management Interface
4、 Compatibility information
Supported Dell EMC Systems:
Unity series storage array
PowerEdge series servers
VxRail hyper fusion system
Specific models of PowerMax systems
Operating system support:
VMware HANA 6.7 and above
Windows Server 2016/2019
Red Hat Enterprise Linux 7/8
SUSE Linux Enterprise Server 12/15
5、 Recommended application scenarios
1. General enterprise workloads
Virtualization platform storage
Medium sized database applications
File sharing service
2. Cloud infrastructure
Virtual machine image storage
Container persistent storage
Development and testing environment
3. Commercial applications
Email server storage
Web application storage
Collaborative platform storage
4. Data Protection
Backup storage acceleration layer
Disaster recovery storage
Data hierarchical storage
6、 Summary of Product Advantages
performance advantage
Balanced read and write performance
Stable low latency
Good IOPS performance
Reliability advantage
Enterprise level durability design
Comprehensive data protection
Long life cycle
cost advantage
Optimized total cost of ownership
High energy efficiency design
Low maintenance cost
7、 Environmental specifications
Parameter specifications
Working temperature: 0 ° C to 55 ° C
Storage temperature -40 ° C to 70 ° C
Working humidity 8% to 90% non condensing
Typical power consumption of 8-10W
Maximum power consumption 15W
Anti vibration meets enterprise level standards
