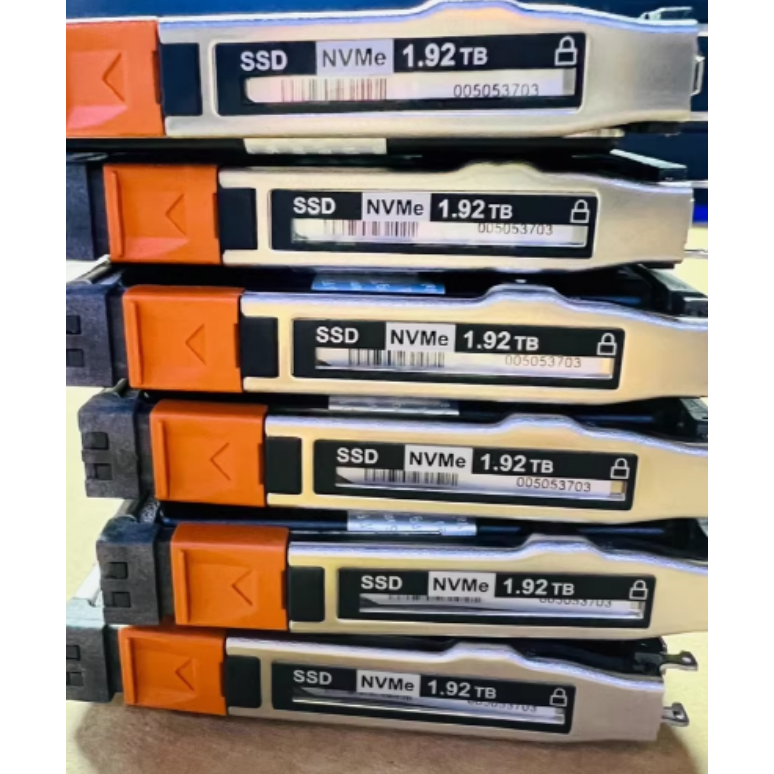

EMC Enterprise NVMe Solid State Drive - Model 118000740 Product Detailed Description
1. Product Overview
The EMC 118000740 (disk model PM1723B) is a high-performance enterprise-grade NVMe SSD with a capacity of 1.92TB. This product utilizes advanced 3D TLC NAND flash technology, based on the PCIe 4.0 interface and NVMe protocol, specifically optimized for enterprise hybrid workloads, achieving a perfect balance between performance, endurance, and cost-effectiveness.
II. Detailed Technical Specifications
Parameter Category Detail Specifications
Basic Information
EMC Component Number: 118000740
Platter Model: PM1723B
Flash memory type: 3D TLC NAND
Interface Protocol: NVMe 1.4 over PCIe 4.0
Form factor: 2.5-inch U.2 (7mm thickness)
Capacity information
Nominal Capacity: 1.92TB
User Available Capacity ≈1.75TB
Performance parameters
Sequential read speed: 6,800 MB/s
Sequential write speed: 3,500 MB/s
4K Random Read 950,000 IOPS
4K Random Write 220,000 IOPS
Read and Write Latency: Read <70μs, Write <12μs
Reliability parameters
Durability Rating: 3 DWPD
Service life: 10.5 PBW
Mean Time Between Failures: 2,500,000 hours
Annual failure rate 0.35%
Warranty Policy: 5-Year Limited Warranty
III. Core Technologies and Features
1. Innovative Architecture Design
PCIe 4.0 x4 interface, offering a transfer rate of 16 GT/s
Supports multiple namespaces and SR-IOV
Optimized Parallel Processing Architecture
Low-Power High-Performance Controller
2. Enterprise-Level Reliability Engineering
Full Path Power Off Protection: Enhanced Super Capacitor
End-to-end data protection: complete data integrity verification
Advanced LDPC Error Correction: Fourth-Generation LDPC Error Correction
Smart Health Monitoring: Real-time Flash Memory Health Management
3. Intelligent Management Function
Hot-swapping support: Compliant with the NVMe hot-swapping standard
Telemetry: Real-time Performance Monitoring
Temperature Intelligent Control: Multi-zone Temperature Sensors
Remote Management: NVMe-MI 1.1 Management Interface
4、 Compatibility information
Supported Dell EMC Systems:
PowerMax 2500/8500 Full Flash Array
Unity XT 380F/480F/680F/880F
PowerEdge MX740c/MX840c
VxRail P Series/V Series
Software environment support:
VMware HANA 7.0 U2 and above
Windows Server 2022
Red Hat Enterprise Linux 8.4 and above
SUSE Linux Enterprise Server 15 SP3
5、 Recommended application scenarios
1. Key business of the enterprise
Medium sized database systems (Oracle, MySQL)
Virtualization platform storage
Enterprise Application Server
2. Cloud computing environment
Private cloud storage infrastructure
Hybrid cloud storage solution
Cloud native application storage
3. Data analysis
Real time data processing
Business Intelligence Analysis
Machine learning inference workload
4. Virtualization deployment
Virtual Desktop Infrastructure (VDI)
Server virtualization
Container platform storage
