1. Product Overview

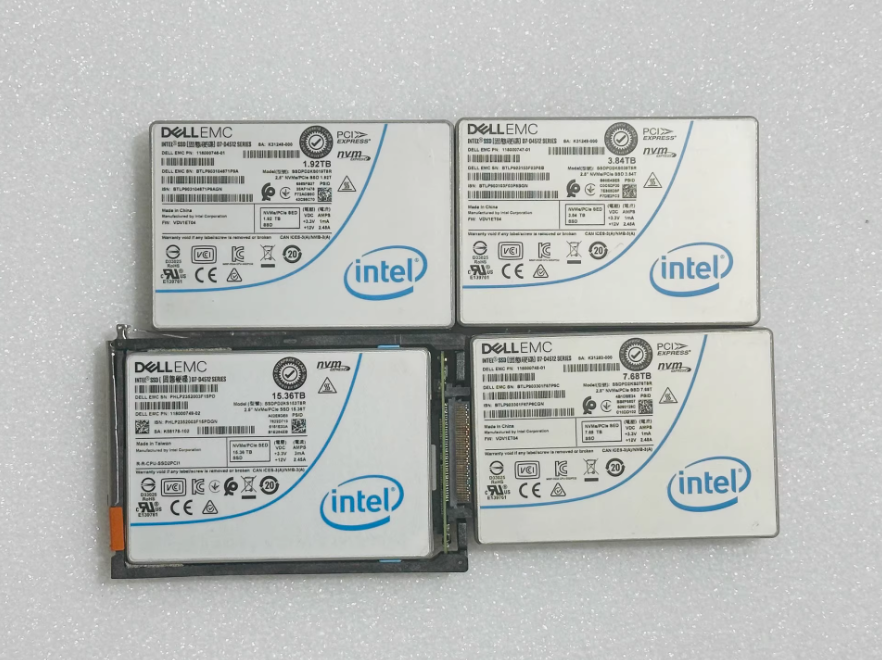

The EMC 118000747-01 is a high-performance enterprise-grade NVMe solid-state drive utilizing Intel 3D NAND flash technology, with a capacity of 3.84TB. Designed for demanding workloads in modern data centers, this product is based on the PCIe 4.0 interface and NVMe protocol, achieving an exceptional balance of performance, capacity, reliability, and energy efficiency.

II. Detailed Technical Specifications

Parameter Category Detail Specifications

Basic Information

EMC Part Number 118000747-01

Flash Technology

Intel® 3D TLC NAND

Interface Protocol: NVMe 1.4 over PCIe 4.0

Form Factor: 2.5-inch U.2 (15mm thickness)

Capacity Information

Nominal Capacity: 3.84TB

Available user capacity  3.5TB (including system reserved space)

Performance parameters

Sequential read speed: 7,000 MB/s

Sequential Write Speed 4,200 MB/s

4K Random Read: 1,400,000 IOPS

4K Random Write 300,000 IOPS

Read/Write Latency: Read <70μs, Write <10μs

Reliability parameters

Durability Level 3 DWPD

Service Life: 21 PBW (Total Data Written)

Mean Time Between Failures (MTBF) 2,500,000 hours

Unrecoverable error rate <1e-17

Warranty Policy: 5Year Limited Warranty

III. Core Technologies and Features

1. Intel 3D NAND Technology

Equipped with 144-layer 3D TLC NAND flash memory

Innovative Floating Gate Memory Cell

High-density storage architecture

Optimized charge retention characteristics

2. Enterprise-level reliability

Full Path Power Failure Protection: Onboard Super Capacitor Array

End-to-end data protection: Full data path validation

Advanced Error Correction Technology: Third-Generation LDPC Error Correction

Smart Wear Leveling: Dynamic Wear Leveling Algorithm

3. Smart Management Function

Hot-swap support: Compliant with NVMe hot-swap standards

Health Status Monitoring: Telemetry 2.0 Remote Sensing Technology

Temperature Management: Multi-zone Temperature Monitoring and Regulation

Remote Management: NVMe-MI 1.1 Management Interface

IV. Compatibility Information

Supported Dell EMC Systems:

PowerMax 2500/8500 All-Flash Array

PowerEdge MX Series Modular Servers

Unity XT 380/480/680/880 Hybrid Storage

VxRail P Series/V Series Hyper-Converged Systems

Operating System Support:

VMware vSphere 7.0 U3 and above

Windows Server 2022

Red Hat Enterprise Linux 8.4 or higher

SUSE Linux Enterprise Server 15 SP3

V. Recommended Application Scenarios

1. Key Business of the Enterprise

Large Database Systems (Oracle Exadata)

SAP HANA In-Memory Computing Platform

Enterprise Resource Planning System

2. Virtualization and Cloud Computing

Enterprise-grade virtualization platform

Converged infrastructure

Hybrid cloud storage solution

3. Data Analysis and AI

Real-time Data Analytics Platform

Artificial Intelligence/Machine Learning Training

Big Data Processing Cluster

4. High-performance computing

Scientific Research Computation

Financial Risk Modeling

Media Content Production
