EMC Enterprise NVMe Solid State Drive - Model 118000596-03 Product Details
1、 Product Overview
EMC 118000596-03 (using Intel flash technology) is a high-performance enterprise NVMe solid state drive with a capacity of 1.5TB. The product is based on Intel's premium flash technology and is designed specifically for enterprise mixed workloads, achieving an excellent balance between performance, durability, and cost-effectiveness, making it suitable for a variety of enterprise storage application scenarios.
2、 Detailed technical specifications
Detailed specifications of parameter categories
Basic Information
EMC part number 118000596-03
Flash technology Intel 3D NAND
Interface Protocol NVMe over PCIe 3.0

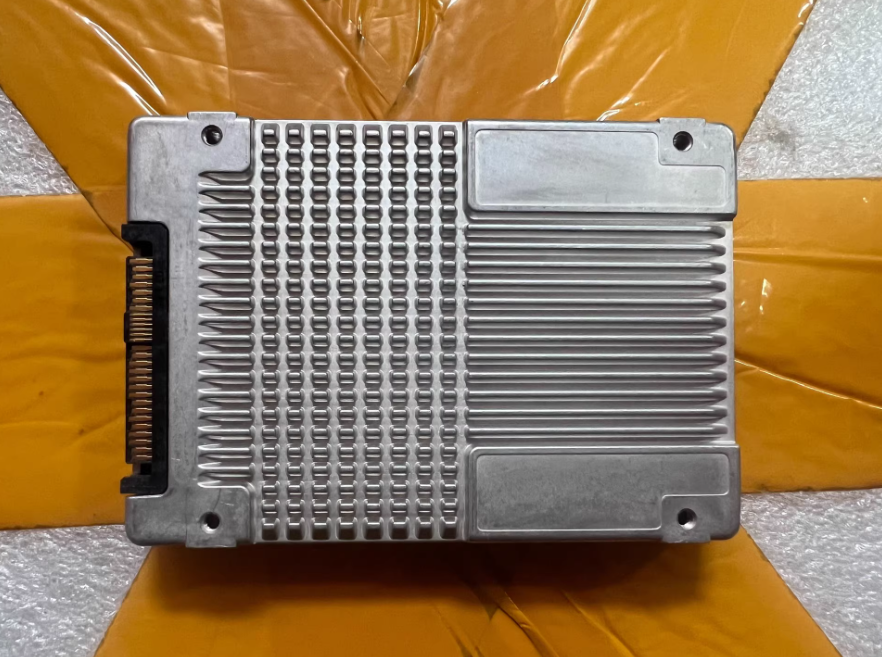

Appearance specification 2.5 inches U.2
Capacity information
Nominal capacity of 1.5TB
Available capacity ≈ 1.37TB
performance parameters
Sequential read speed 3200 MB/s
Sequential write speed of 1600 MB/s
4K random read 500000 IOPS
4K random write 90000 IOPS
Read/write delay: Read<85 μ s, write<15 μ s
Reliability parameters
Durability level 3 DWPD
Optimized flash controller architecture
Supports PCIe 3.0 x4 interface
Low power and high-performance design
2. Enterprise level reliability
Power outage protection mechanism: data integrity guarantee
End to end data protection: complete verification mechanism
Advanced Error Correction: LDPC Error Correction Technology
Wear Balance Algorithm: Intelligent Life Management
3. Intelligent management function
Hot swappable support: online maintenance capability
Health status monitoring: S.M.A.R.T. attribute
Temperature Management: Dynamic Temperature Control Adjustment
Firmware Management: Online Upgrade Support
4、 Compatibility information
Supported Dell EMC Systems:
PowerEdge series servers
VxRail hyper fusion system
Unity hybrid storage array
PowerMax All Flash Array
Operating system support:
Windows Server 2016/2019/2022
Red Hat Enterprise Linux 7/8
VMware ESXi 6.7/7.0
SUSE Linux Enterprise Server 12/15
5、 Recommended application scenarios
1. General enterprise workloads
Virtualization platform storage
Medium sized database applications
File sharing service
2. Cloud infrastructure
Virtual machine image storage
Container persistent storage
Development and testing environment
3. Commercial applications
Email server storage
Web application storage
Collaborative platform storage
4. Data Protection
Backup storage acceleration layer
Disaster recovery storage
Data archiving and storage
6、 Summary of Product Advantages
performance advantage
Balanced read and write performance
Stable low latency
Good IOPS performance
Reliability advantage
Intel High Quality Flash Memory
Enterprise level durability design
Comprehensive data protection
cost advantage
Optimized total cost of ownership
High energy efficiency design
Long term operational reliability
7、 Environmental specifications
Parameter specifications
Working temperature: 0 ° C to 55 ° C
Storage temperature -40 ° C to 70 ° C
Working humidity 8% to 90% non condensing
Working altitude of 3000 meters
Typical power consumption of 8-10W
Maximum power consumption 15W
Anti vibration 4.0 Grms (5-700 Hz)
