NETAPP Enterprise NVMe Solid State Drive - Model 118000741 (005053079) Product Details
1、 Product Overview

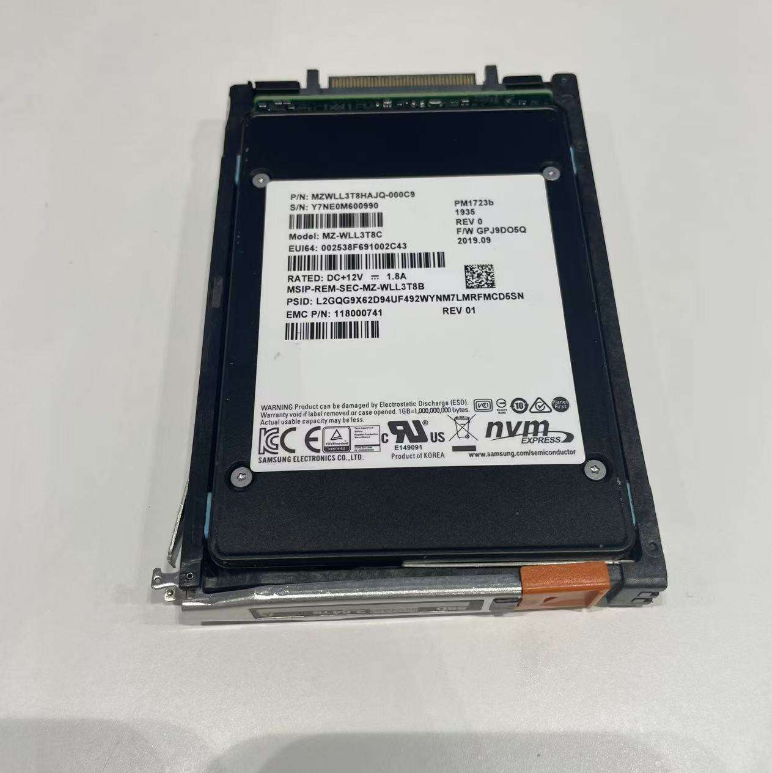

NETAPP 118000741 (disk model PM1723B) is a high-performance enterprise grade NVMe solid state drive with a capacity of 3.84TB. The product uses advanced 3D TLC NAND flash technology and is designed specifically for modern enterprise workloads, achieving excellent balance in performance, capacity, and reliability, making it suitable for a variety of data intensive application scenarios.
2、 Detailed technical specifications
Parameter Category Detailed Specification Remarks
Basic Information
NETAPP part number 118000741 main identification code
Auxiliary part number 005053079 spare identification code
Disk model PM1723B physical disk identification
NVMe over PCIe 4.0 interface protocol latest interface standard
Appearance specification 2.5 inches U.2 (SFF-8639) enterprise standard
Capacity information
Nominal capacity 3.84TB original capacity
Available capacity ≈ 3.5TB considering RAID and system overhead
performance parameters
Sequential read speed 6500 MB/s PCIe 4.0 performance
Sequential write speed 3800 MB/s Continuous write performance
4K random read 900000 IOPS high queue depth
4K Random Write 250000 IOPS Random Write Performance
Read/write latency reading<70 μ s, write<12 μ s low latency performance
Reliability parameters
Durability level 5 DWPD daily full disk write count
Service life 35 PBW lifetime write capacity
Mean time between failures 2500000 hours
3、 Core Technologies and Characteristics
1. High performance architecture
PCIe 4.0 x4 interface, doubled bandwidth
Optimized NVMe protocol stack
Support multi namespace isolation
dynamic power management
2. Enterprise level reliability
Advanced power-off protection: multi-layer data protection mechanism
End to end data integrity: complete CRC check
Intelligent Error Recovery: Automatic Error Detection and Repair
Wear Balance Algorithm: Extending Flash Memory Life
3. Intelligent management function
Hot swappable support: online maintenance capability
S. M.A.R.T. Enhanced Monitoring: Predictive Fault Analysis
Temperature adaptive adjustment: intelligent temperature control management
Remote management support: NVMe MI standard management interface
4、 Compatibility information
Supported NetApp systems:
AFF A-series Full Flash Array: A250, A400, A800
FAS9500 series hybrid storage system
Supports ONTAP 9.8 and higher versions
Physical compatibility:
Standard 2.5-inch disc position
DS224C, DS460C disk rack
Support hot swappable installation
5、 Recommended application scenarios
1. High performance computing
Real time data analysis
AI/machine learning workloads
Scientific computing simulation
2. Key applications for enterprises
Large scale database systems (Oracle, SQL Server)
ERP system storage
Virtualization infrastructure
3. Cloud service environment
Private cloud storage platform
Hybrid cloud storage solution
Container persistent storage
