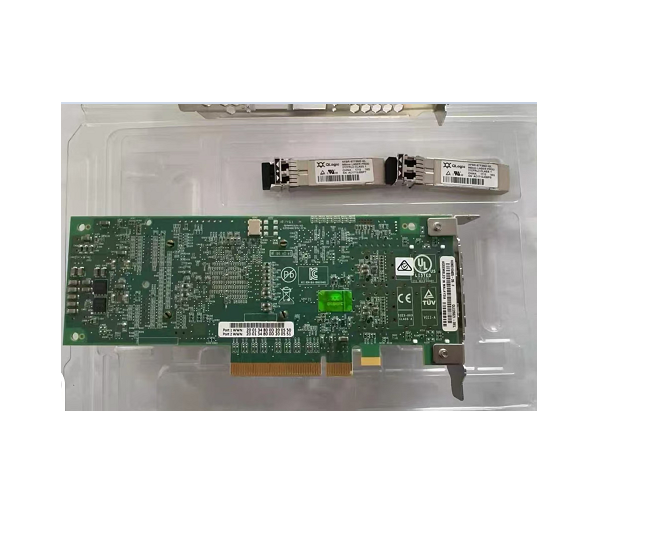

QLogic QLE2662 Dual Port 16Gb Fiber Channel Host Bus Adapter (HBA) Product Introduction
product overview
QLogic QLE2662 is a high-performance dual port 16Gb fiber channel host bus adapter designed for modern enterprise storage area networks (SANs), featuring PCIe 3.0 interfaces. This product provides excellent throughput and ultra-low latency, making it an ideal choice for virtualization, cloud computing, and critical business applications.
Core advantages
Excellent performance
Dual port 16Gb/s fiber channel, each port provides 1600MB/s full duplex bandwidth
Ultra low latency design (<1 microsecond), suitable for high-performance computing environments
Backward compatibility with 8Gb/s and 4Gb/s speeds to protect existing investments
Enterprise level reliability
Support end-to-end data integrity check (CRC)
Multipath I/O (MPIO) and automatic failover functionality
Compliant with the latest industry standard FC-PI-6
Advanced technological features
Support NVMe over FC protocol
Hardware accelerated SCSI and NVMe protocol processing
Dynamic bandwidth allocation and intelligent load balancing
technical specifications
Parameter specifications
Port configuration with 2 independent 16Gb FC ports
Host interface PCIe 3.0 x8
The protocol supports FC-FS-3, FC-LS2, FCP-4, NVMe/FC
Maximum power consumption 12W (full load)
Working temperature: 0 ° C to 55 ° C
Dimensions: Full height/half height baffle available
Application scenarios
Enterprise virtualization platforms (VMware HANA, Microsoft Hyper-V)
High performance databases (Oracle RAC, SAP HANA)
Cloud computing infrastructure storage connection
4K/8K video production and media storage
management function
QLogic SANsurfer Management Suite
Detailed performance monitoring and alarm functions
Support SNMP and REST API integration
Operating system support
Windows Server: 2012/2016/2019
Linux: RHEL 7/8, SLES 12/15
Virtualization: VMware iPadOS 6.5/7.0
Unix: Solaris 11
