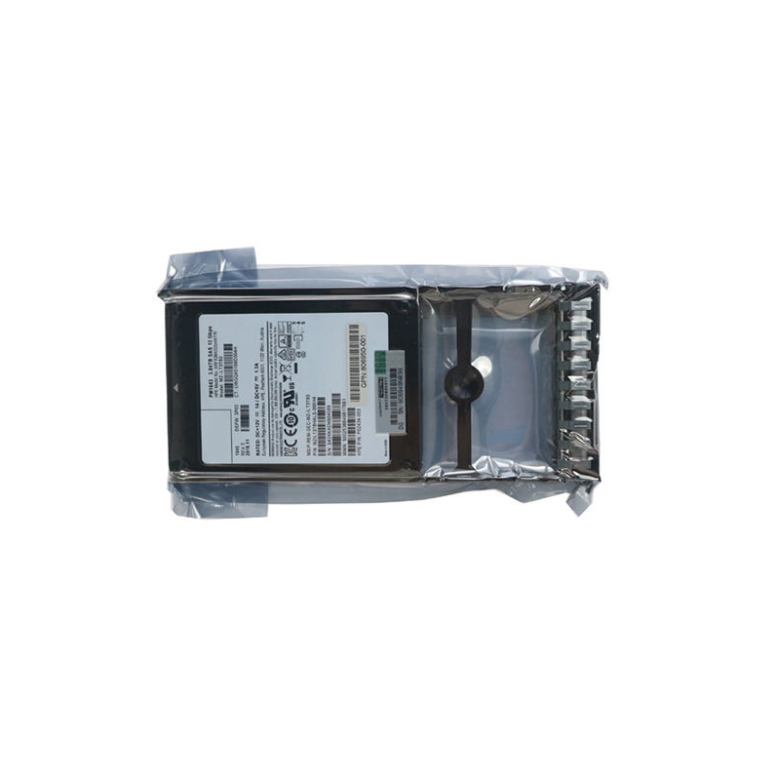

HPE P02435-009 (PM1643) 3.84TB NVMe SSD Enterprise Solid State Drive Product Introduction
Product Overview
HPE P02435-009 (disk body model PM1643) is a high-performance enterprise NVMe solid-state drive that uses HPE's self-developed enterprise level solution. This hard drive is designed specifically for enterprise critical business systems that require high-performance storage, achieving the best balance between performance, capacity, and reliability, and is suitable for application scenarios such as databases, virtualization, and cloud computing.
1. Core features and specifications
Capacity specification: 3.84TB
(Adopting intelligent capacity management technology and optimizing OP configuration to the optimal state)
Interface protocol: NVMe 1.3 over PCIe 3.0 x4
Appearance specification: 2.5 inches U.2 (SFF-8639)
Performance performance:
Continuous reading speed: up to 3200 MB/s
Continuous write speed: up to 2100 MB/s
Random read IOPS: up to 600000 (4K)
Random write IOPS: up to 120000 (4K)
Durability index:
DWPD: 1.2 (5-year warranty period)
TBW：8.4PB
MTBF: 2.5 million hours
Flash Memory Type: 3D eTLC NAND
(Using enterprise grade enhanced TLC flash memory to provide excellent durability)
2. Advanced features
Intelligent power management:
Multi level power consumption state management
Integrated Advanced Power Failure Protection (PLP) Circuit
Power efficiency increased by 20%
Data Protection:
End to end data path protection
Enhanced ECC Error Correction Algorithm
RAID level data protection function
Performance optimization:
Intelligent pre reading and caching algorithm
QoS Service Quality Control
Adaptive read-write scheduling
Thermal management:
Multi point temperature monitoring
Dynamic temperature control regulation
Overheating protection mechanism
3. Applicable scenarios
Enterprise level database:
Oracle database system
sql server database
MySQL cluster deployment
Virtualization platform:
VMware HANA environment
Microsoft Hyper-V Platform
Containerized application storage
Cloud computing:
Private cloud storage resource pool
Hybrid cloud storage solution
Cloud native application storage
Big data analysis:
Real time data processing
Data warehouse storage
Business Intelligence Analysis
4. Compatibility information
Support platform:
HPE ProLiant DL360 Gen10
HPE ProLiant DL380 Gen10
HPE Apollo 4200 System
HPE Synergy 480 System
System requirements:
UEFI 2.4 or higher version
NVMe 1.3 protocol support
PCIe 3.0 x4 interface
Management tools:
HPE iLO 5 Management Suite
HPE OneView Management Platform
HPE InfoSight analysis tool
