Product Description
1.Product Overview

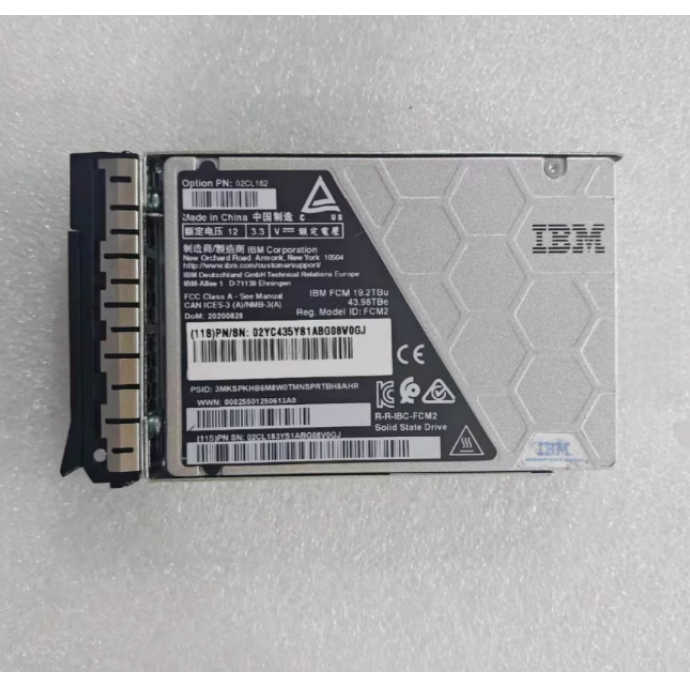

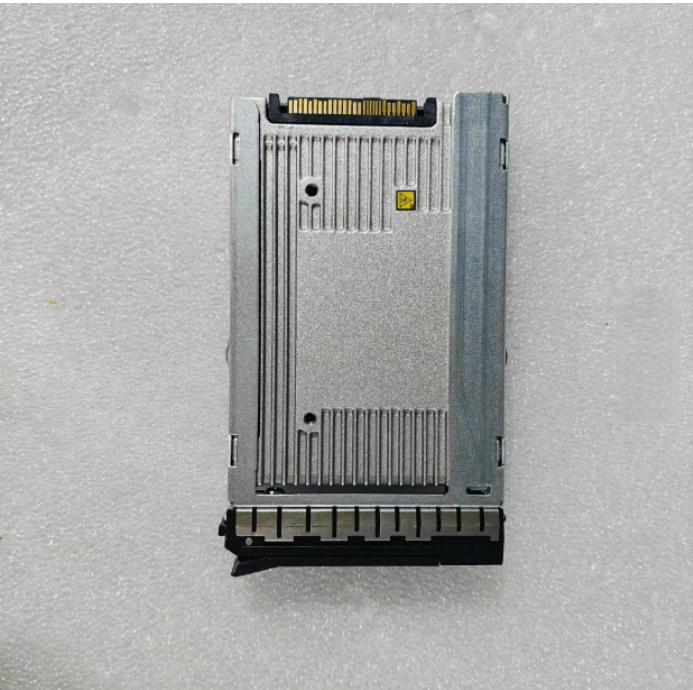

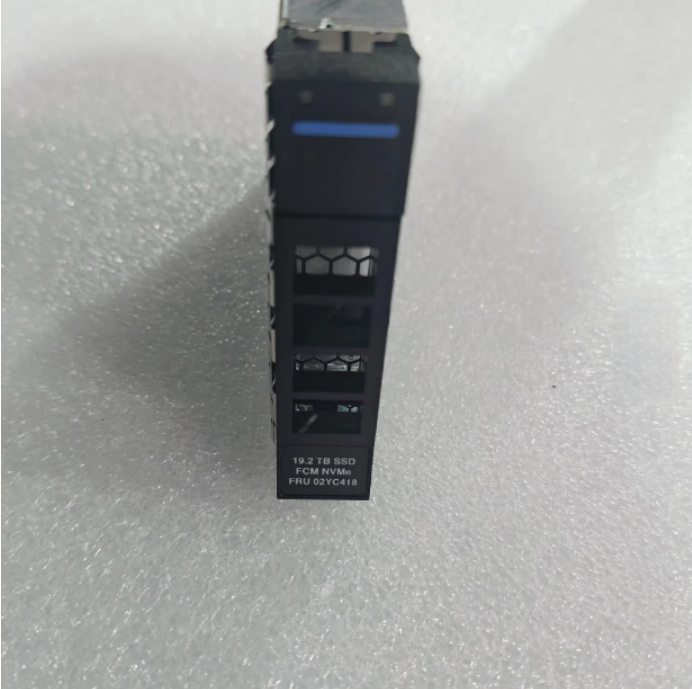

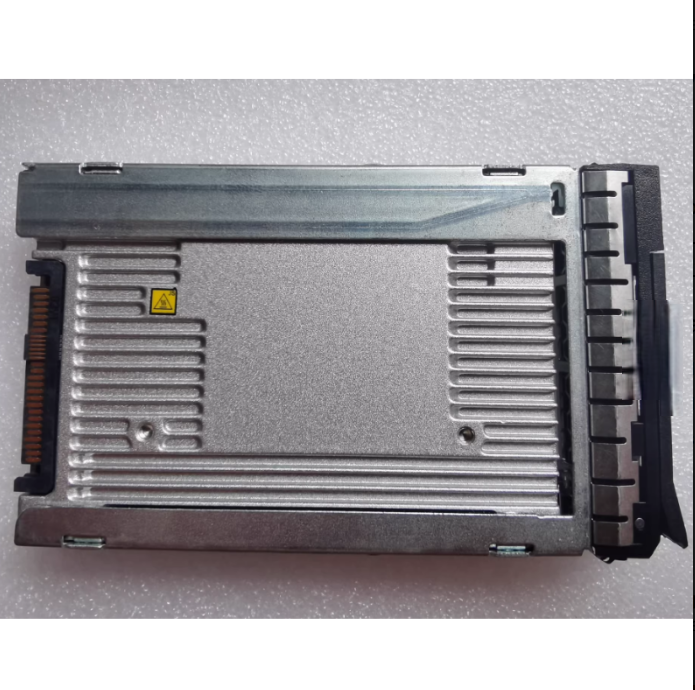

Original All Flash Storage Solution | 19.2TB NVMe PCIe 4.0 Enterprise Solid State Drive (Complete Component Number: 02CL183-03GH471) - Provides Ultimate Performance and Capacity Guarantee for Ultra Large Scale Data Storage
2.Core advantages
Ultimate Performance Performance
Adopting NVMe PCIe 4.0 interface protocol, the sequential read speed reaches up to 14500 MB/s, the sequential write speed reaches 7200 MB/s, and the random read/write performance exceeds 2.2M IOPS, meeting the most demanding enterprise level application requirements
Intelligent cooling system
Equipped with original heat dissipation bracket (03GH471), adopting dual fan active heat dissipation design, built-in intelligent temperature control system, ensuring optimal working temperature under full load operation
Authentic Quality Certification
Specially designed for IBM FlashSystem 9500 optimization, ensuring perfect compatibility and stability with storage systems through IBM's rigorous quality testing
Ultra large storage capacity
19.2TB ultra large capacity, using 3D TLC NAND flash technology to provide sufficient storage space for enterprise level applications
Enterprise level reliability
Supports 7 × 24-hour uninterrupted operation, with an annual write capacity of 3 DWPD and a warranty life of 5 years or 105 PBW
3.Technical specifications
Detailed specifications of parameter categories
Brand IBM
Hard drive model 02CL183
Bracket model 03GH471
Storage capacity 19.2TB
Interface standard NVMe PCIe 4.0 x4
Appearance specification 2.5 inches U.2
Flash Memory Type: 3D TLC NAND
Includes NVMe drive body and original heat dissipation bracket (03GH471)
Read and write performance: Sequential read: 14500 MB/s | Sequential write: 7200 MB/s
Durability index 3 DWPD (5 years/105PBW)
Compatible with IBM FlashSystem 9200/9500 series
4.Compatible system
Perfect compatibility platform:
FlashSystem 9200
FlashSystem 9500
DS8900F
Storage Virtualize 8.5 and above versions
Spectrum Virtualize
5.Application scenarios
Enterprise level key applications:
Artificial Intelligence Training - Supports large-scale AI model training dataset storage
High performance computing - large-scale data storage for scientific research computing and engineering simulation
Real time data analysis - financial transaction and IoT data analysis platform
Enterprise level virtualization - hyper converged infrastructure and private cloud platform
Database Acceleration - Key Database Storage such as Oracle RAC, SQL Server, etc
Media Production -8K Video Production and Media Asset Management System
6.Quality Assurance
100% original components, providing genuine verification
Pass 120 hour high-temperature aging test
Provide a complete SMART health status report
Professional technical support services
Support machine validation testing
7.Installation requirements
system requirements
Requires support for IBM Storage Virtualize 8.5 or higher versions
Firmware Version
Must upgrade to the latest IBM system firmware version
environmental conditions
Operating temperature: 5 ° C to 40 ° C
Storage temperature: -40 ° C to 70 ° C
Humidity: 8% to 90% non condensing
Installation recommendations
Suggest installation and configuration by technical personnel
8.Service Support
Professional technical consultation - providing complete technical specifications and compatibility guidance
Installation and configuration support - provide detailed installation and configuration documentation
Batch purchase discount - supports enterprise level batch purchase needs
Quick Response Service - Professional Technical Team with 24/7 Support
Spare parts guarantee - providing fast spare parts replacement services
