NetApp Enterprise NVMe Solid State Drive -108-00468 (X356A-R6, PM1633) Product Introduction
Overview

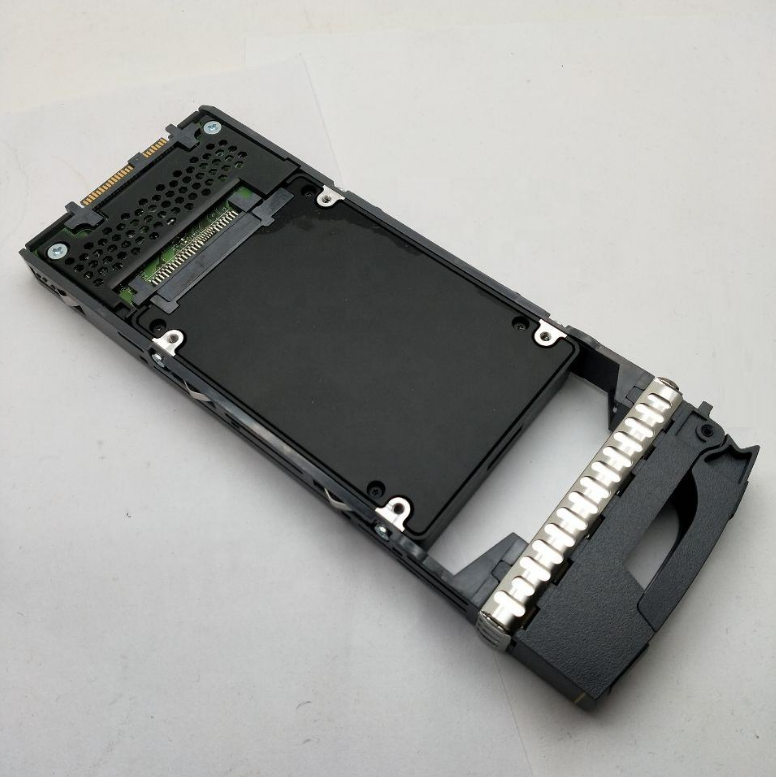

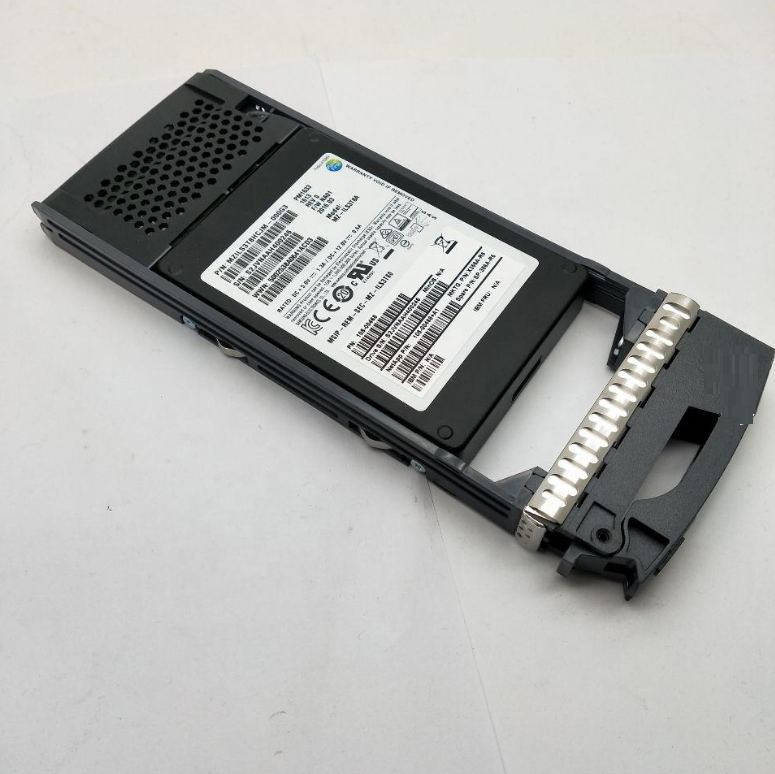

NetApp 108-00468 (part number X356A-R6, disk body model PM1633) is a read intensive NVMe solid-state drive designed by NetApp specifically for its all flash storage systems. This model offers a capacity of 3.84TB and adopts a standard 2.5-inch U.2 interface. Based on the mature PM1633 platform, it provides balanced performance and reliability for NetApp AFF series storage arrays, suitable for medium scale read intensive workloads.
Core specifications and features
Project Specification Description
NetApp model 108-00468
Part number X356A-R6
Disk model PM1633
Capacity 3.84TB
Interface Protocol NVMe 1.2
Appearance specification 2.5 inches U.2 (SFF-8639)
NAND type 3D TLC NAND
Durability/Durability 1.0 DWPD (Daily Full Disk Write Count during 5-year Warranty)
Total 7.0 PBW (lifetime write capacity)
Performance sequential reading: up to 3200 MB/s
Sequential writing: up to 1100 MB/s
Random read: 480000 IOPS (4K)
Random Write: 32000 IOPS (4K)
Power consumption activity power consumption 2W
Idle power consumption5W
Reliability index MTBF: 2.5 million hours
UBER：1e
Key feature - Read optimization design: optimized for read intensive workloads
NetApp custom firmware: deeply integrated ONTAP system
Enterprise level reliability: supports end-to-end data protection
Energy Efficiency Optimization: Excellent Power Consumption per TB Unit
Technical Features
Performance characteristics
Continuous read bandwidth reaches 3.2GB/s, meeting the needs of most enterprise applications
Random read performance reaches 480K IOPS, suitable for random read workloads
Optimized writing algorithm to ensure stable performance
reliability characteristics
Support Power Loss Protection
Advanced Wear Balance Algorithm
Real time bad block management and remapping
management function
Support NVMe Management Interface
Integrated NetApp AutoSupport functionality
Real time health status monitoring
system compatibility
Supports NetApp systems:
AFF A Series Full Flash Array
FAS series hybrid storage array (equipped with NVMe tray)
EF series full flash array
Requirement for ONTAP version:
ONTAP 9.4 and above versions
Recommend using ONTAP 9.7 or later versions
Management tools:
NetApp System Manager
Active IQ Unified Manager
ONTAPI Command Line Interface
Applicable scenarios
Enterprise virtualization environment
VMware HANA virtualization platform
Microsoft Hyper-V Environment
VDI Virtual Desktop Infrastructure
Database application
Read only database copy
Report and Data Warehouse Query
Develop and test database environment
File Service
Enterprise file sharing storage
Active Archive Storage
Content distribution and storage
Cloud infrastructure
Private cloud storage resource pool
Hybrid cloud storage layering
Backup and restore storage
